Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: LX-IPX700D
Test standard:

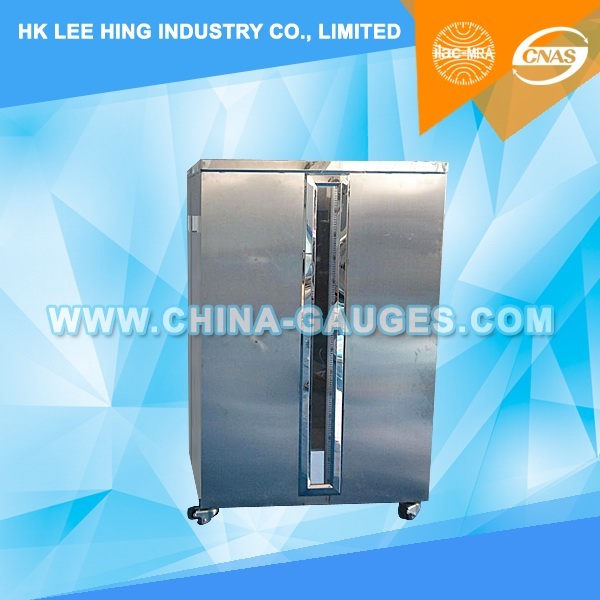

IPX7 Water Immersion Resistance Test Cabinet is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX1/2.
Application:
IPX7 water proof test machine is used to test the sealing and water-proof property for external lighting, signal device, vehicle lamps shell protection. It provides a realistic water spray simulation condition of electronic products and components.
Features:
1. Leaching tank is a double-layer structure, the inner layer of the SUS304# stainless steel plate overall accuracy sub arc welding, ensure the long time use is not rust water, Intermediate with 40 square steel reinforcement, make the leaching tank is used for a long time won't because the stress and deformation, outer layer by the hairline stainless steel plate welding, using mirror stainless steel plate edge, Leaching tank appearance without solder joints on the overall appearance generous.
2. In and out of the water pipe below the water tank, hidden in a stainless steel base, the base has two external water valve switch, a inlet valve, a drain valve.
3. Stainless steel ruler display water level.
4. The observation window is made of 15mm toughened glass, and the test case of the test sample can be observed. Strong and durable for a long time use is not leaking.
5. Stainless steel frame with casters truck and foot cups for easy mobility and fixed.
Specifications:
Device parameters | |
Item No. | LX-IPX700D |
Internal Dimension | 800*500*1500mm |
External Dimension | 880*850*1650mm |
Test maximum depth | 1.5m |
Water level adjustment method | Manual adjustment |
Water level display | Stainless steel ruler visually |
Water tank material | SUS304 |
