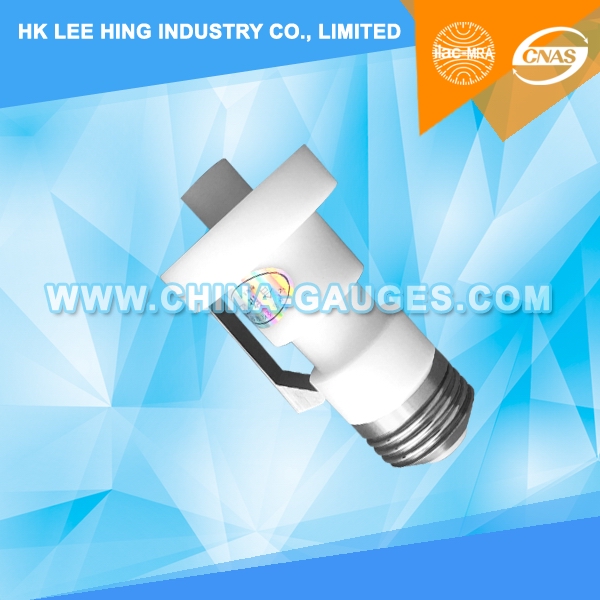

E40 Plug Gauge for Lampholders for Testing Protection Against Accidental Contact 7006-24-3

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
Origin: China Guangdong
Item No.: 7006-24-3

E40 Plug Gauge for Lampholders for Testing Protection Against Accidental Contact 7006-24-3

PURPOSE: To check E40 lampholders in respect of protection against accidental contact.

TESTING: The gauge is screwed fully home.

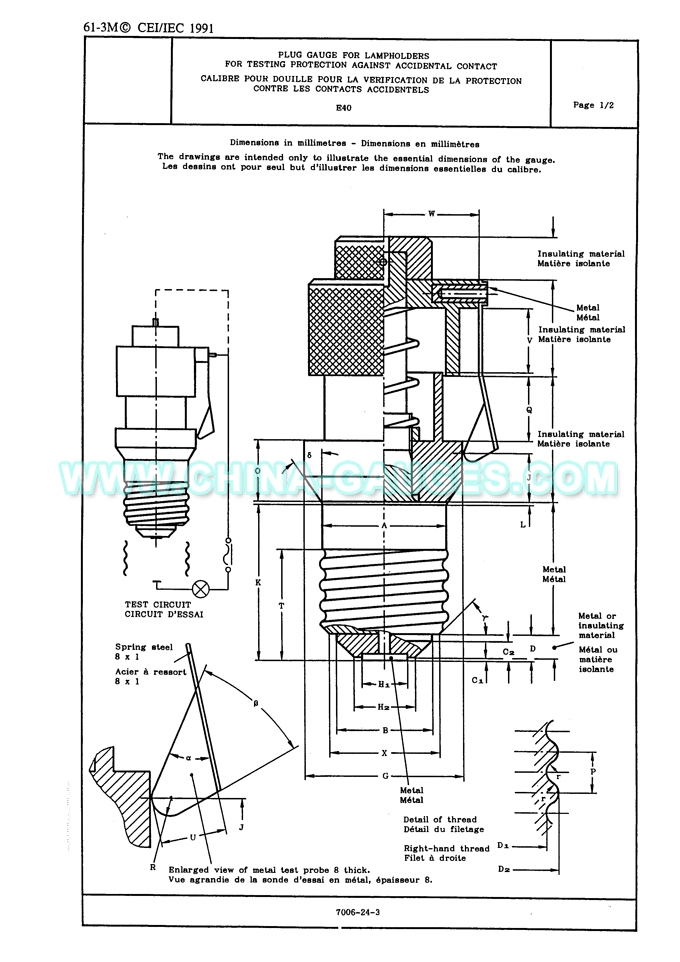

The test circuit is checked as shown by the dotted line. In this position the indicator lamp shall light.

With the gauge still in this position the plug is connected to the test probe, which is then slid downwards as far as it will go into the space between the gauge and the holder.

In this position the lamp shall not light.
